28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

Product Categories
Masing Motor (Shenzhen) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

Brand Name : Masing Motor

Model Number : MS-BL2838

Certification : 16949,RohS,CE,ISO

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000piece/per month

Delivery Time : 3-5 work weeks

Packaging Details : Carton box

Product Name : 24v Dc Brushless Motor 10000 Rpm

Shaft type : Flat ,D-cut or Round ect

Motor size : φ28mm*L38mm

Bearing type : Oil bearing or ball bearing

Motor Type : Brushless Motor

Application : Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics,etc.

Structure : Built-in drive

Direction of motor : CW&CCW

Rated Voltage : 6volt -30volt

Function : Driving effect

Contact Now

28mm 24V DC Brushless Motor 10000 RPM for Spin Coater, Vending Machine, Pump BL2838
Product Overview

High-performance 28mm brushless DC motor designed for precision applications with customizable voltage, speed, and torque specifications.

  • Rated Voltage Range: DC 6V-24V
  • Rated Speed: 1000rpm - 10000rpm
  • Motor Speed: Proportional to motor voltage
  • Torque Range: 10g.cm - 200g.cm
  • Motor Type: Brushless DC Motor
  • Default Direction: CW & CCW

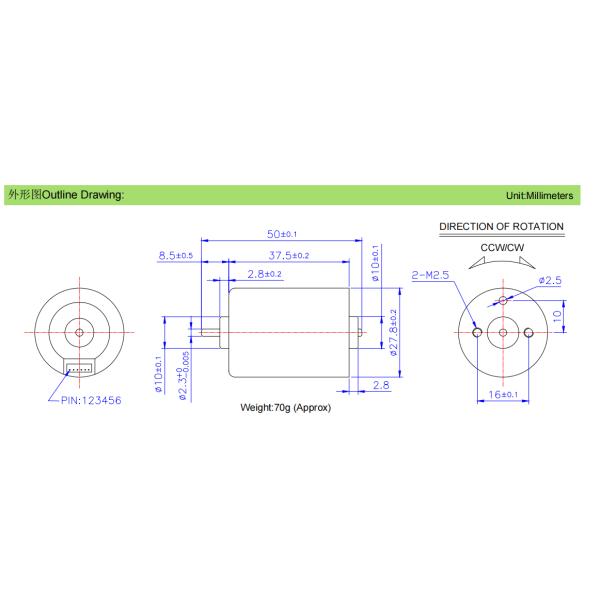

  • Motor Size: φ28mm × L38mm
  • Shaft Options: φ2.3mm or custom specifications
  • Bearing Types: Oil bearing or ball bearing
  • Working Temperature: -40°C to +60°C
  • Structure Options: Built-in driver or external driver
Technical Specifications
Rated Speed
1000rpm - 10000rpm
Continuous Current
10mA - 500mA
Efficiency
IE3
Warranty
3 Months - 1 Year
Motor Diameter
φ28mm
Weight
90g
Noise Level
≤55DB
MOQ
1000 Pcs

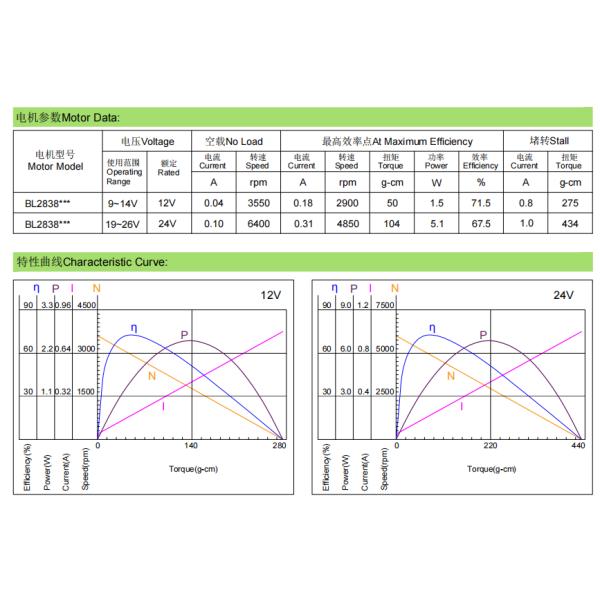

Performance Data
Motor Model Voltage No Load Current (A) No Load Speed (rpm) Max Efficiency Current (A) Max Efficiency Speed (rpm) Max Efficiency Torque (g-cm) Power (W) Efficiency (%) Stall Current (A) Stall Torque (g-cm)
BL2838*** 9~14V (12V) 0.04 3550 0.18 2900 50 1.5 71.5 0.8 275
BL2838*** 19~26V (24V) 0.10 6400 0.31 4850 104 5.1 67.5 1.0 434
Product Images
28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838 28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838 28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838 28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838
Applications

This brushless motor is suitable for various precision applications including:

  • Smart home devices
  • Robotics and automation
  • Office equipment
  • Power tools
  • Medical equipment
  • Precision instruments
  • Automotive electronics
  • Toys and massagers
  • Robot vacuum cleaners
  • Intelligent trash cans
  • Personal care devices
  • Electric bicycles
  • Fans and ventilation systems
  • Cosmetic instruments
  • Medical imaging equipment
Packaging & Delivery
Packaging
Strong Carton 100pcs/box, or custom
Port
Shenzhen/Guangzhou/Shanghai
Package Size
37×27×24cm
Gross Weight
70g
Supply Ability
100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Sample Information: Maximum order quantity: 1 piece | Sample price: $15/piece

Certifications
28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838

We hold CE, ROHS, ISO9001, ISO14000, IATF16949 certifications and can assist with additional testing requirements.

Frequently Asked Questions
Q1: Are you BLDC MOTOR manufacturer for OEM & ODM?
A1: Yes, we are a BLDC MOTOR manufacturer. We provide OEM & ODM services.
Q2: Do you manufacture products yourself?
A2: Yes, we manufacture products ourselves. We have our own R&D team and industrial park, controlling all design and production procedures.
Q3: Do you own patents?
A3: Yes, we own patents on all our products, ensuring no patent infringement when selling our products.
Q4: Do you accept private label? What's the MOQ?
A4: Yes, we accept private label. MOQ depends on the model, typically 100pcs to 5000pcs.
Q5: What testing certificates do you have?
A5: We have CE, ROHS, ISO9001, ISO14000, IATF16949 certificates and can assist with additional testing requirements.
