Variable Speed 12mm Small DC Gear Motor Spur Gearbox N20 N30 Micro Worm Gear Motor

Name: Variable Speed 12mm Small DC Gear Motor Spur Gearbox N20 N30 Micro Worm Gear Motor
Brand: Masing Motor
Price: 1 USD

Wholesale Variable Speed 12mm Small DC Gear Motor Spur Gearbox N20 N30 Micro Worm Gear Motor from china suppliers

Brand Name : Masing Motor

Model Number : MSGM1224N20

Certification : 16949 ,ROHS, CE, ISO

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000piece/per month

Delivery Time : 3-5 work weeks

Packaging Details : Carton box

Product name : 12mm small dc gear motors

Shaft tpye : Flat, D-cut, Round,with a hole ,with worm ect

Brush type : Metal Brush or carton brush Motor

Rated Torque : 0.1kgf.cm-2kgf.cm

Gearbox Size : φ12mm *24mm

Motor type : FF-N10,FF-N20,FF0N30

Direction of rotation : CCW&CW

Construction : Permanent Magnet

voltage range : 9.0V-16.0V DC

Operating Temperature Range : -40℃-+85℃

Insulation Resistance : B CLASS

Contact Now

Title:

Custom 12mm Small Dc Gear Motors Spur Gearbox N20 N30 Micro Worm Variable Speed Gear Motor

Description:

Operating voltage range:9.0V-16.0V DC Ratedd voltage:12.0V
Operating Temperature Range:-40℃-+85℃
Storage temperature Range:-40℃-+105℃
Insulation Resistance:B CLASS
Gearbox materials :Copper or steel or customized
Gearbox size :φ12mm*24mm
Shaft diameter :φ3mm
Shaft type:D-cut ,Flat ,round ,M3,M4 or customized
Gear Ratio:1:165 or customized
Life test:Life expectancy is more than 100000 cycles
Noise :50DB Max ,Rated voltage & no load operation. Measured with following condition.Background noise: 32db max.
High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 70%
Low Noise and High Torque: With a torque of 0.1-2kg.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.
Customizable Options: We offer various diameter options (12mm, 13mm, 14mm, etc.) and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
We can provide samples for testing
Every product before shipped is 100% inspected for quality

Key attributes:

No-load Speed(RPM)

95±10% rpm

No-load Current

35mA max

Efficiency

90%-55%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-GM24-N20VA-06370-165

Use

New energy charging pile motor,Car, Robots ,Locks ,Electric Bicycle Lock, Home Appliance, Cosmetic Instrument, SMART HOME

Brush Type

Metal brush/Carton brush

Temperature Range

-40℃-+85℃

Gear type

Spur gears

Shaft diameter

φ3mm

Protect Feature

Exposed Gearbox

Product Name

miniature dc gear motor 12mm

Direction of motor

CW & CCW

Keywords

Mini 12mm N20 DC Gear Motor

Gearbox Diameter

φ12mm,φ13mm,φ14mm,ect

Weight

12g

Noise

50dB max

MOQ

1000Pcs

Shaft type

D-cut ,Flat ,round ,M3,M4 or customized

Insulation Resistance

B CLASS

Gear Ratio

165:1

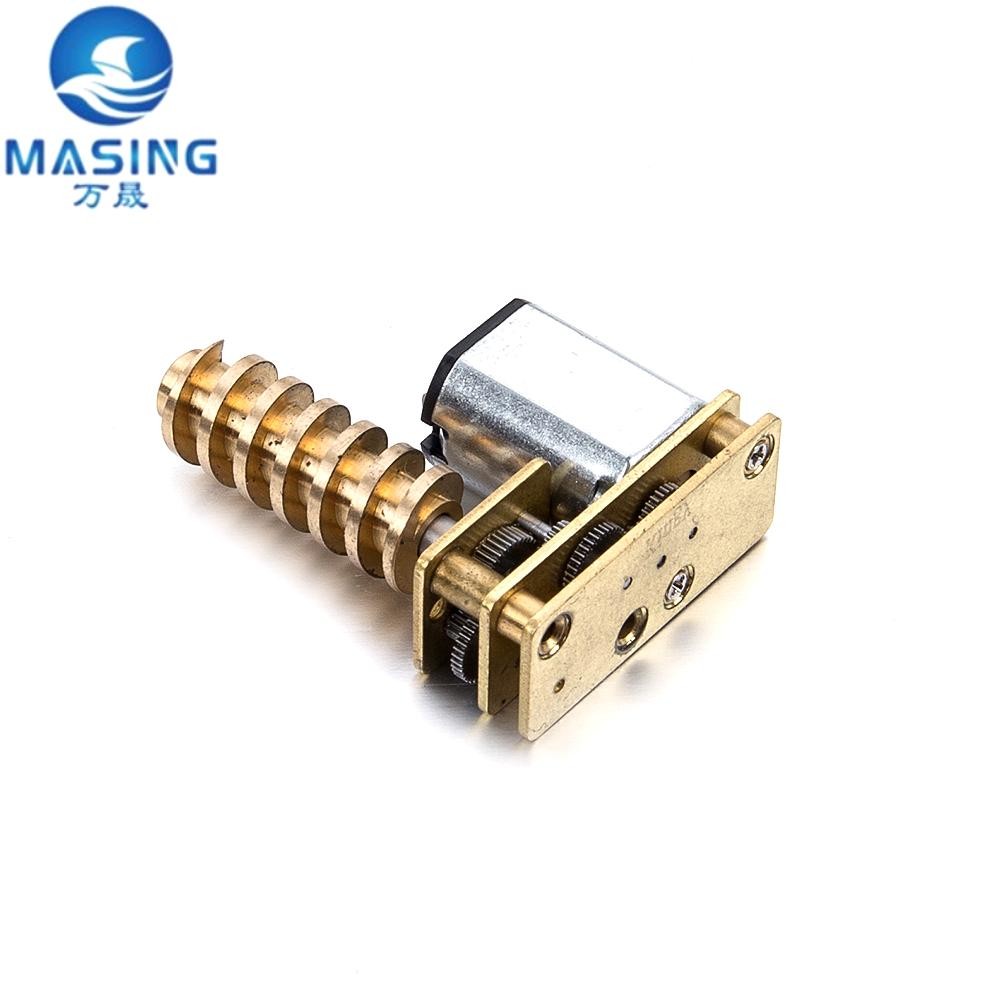

Product Photo:

Variable Speed 12mm Small DC Gear Motor Spur Gearbox N20 N30 Micro Worm Gear Motor

Product Spec:

N20 DC Gear Motor Typical Applications:

Home Appliance, robot,door lock,camera,medcial device,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

GM1224-N20-3.0V

Reduction	10	30	50	100	150	210	250	298	330
Length(mm)	9	9	9	9	9	9	9	9	9
No-load speed(rpm)	960	320	192	96	64	46	38	32	29
Rated speed(rpm)	730	243	146	73	49	35	29	24	22
Rated torque(kg.cm)	0.02	0.04	0.06	0.12	0.15	0.21	0.25	0.30	0.33
Stalling Torque (kg.cm)	0.07	0.18	0.25	0.50	0.63	0.88	1.04	1.24	1.38
GM1224-N20-12.0V
Reduction	50	100	150	210	250	298	330	380	1000
Length(mm)	9	9	9	9	9	9	9	9	12
No-load speed(rpm)	460	230	153	110	92	77	70	61	23
Rated speed(rpm)	410	205	137	98	82	69	62	54	21
Rated torque(kg.cm)	0.06	0.12	0.15	0.21	0.25	0.30	0.33	0.38	0.60
Stalling Torque (kg.cm)	0.55	1.10	1.38	1.93	2.30	2.74	3.04	3.50

Packaging and delivery:

Packaging Details

Strong Carton 1000pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

10.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$10/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,Locks,Car, Electric Bicycle, Home Appliance, Cosmetic instrument

FAQ

Q1: How to order?
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.

Q2: What're your main products?
A2: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q3: Which shipping way is avaliable?
A3: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q4: How to select a suitable motor?
A4: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q5:Do you accept customize?
A5: Sure,as we have a strong design team,any problems will get our technical answer.

Q6:What kind of data do i neet to provide if i want to order?
A6: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.

Q7:How do you make sure motor quality?
A7: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
