DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker

Brand Name : Masing Motor

Model Number : MSGM25A370

Certification : 16949,EU,RoHS,CE,ISO

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000piece/per month

Delivery Time : 3-5 work weeks

Packaging Details : Carton box

Product Name : Brushless dc 12v gear motor

Gearbox Dimension : φ25mm gearbox

Motor type : 370 brushless Motor

Direction of Rotation : CW/CCW available

Power : 0.5W-10W

Gears Material : Metal ,Steel .copper Plastic gears ect

Shaft Material : Carbon Steel or Stainless Steel

Life time : 500H-2000H or customized

Shaft type : Round ,Flat,D-cut or others

Contact Now

DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker
Product Overview

High-performance DC geared motor featuring brushless technology, designed for precision applications including smart breast shakers and various industrial equipment.

  • Voltage range: DC 3.0V-24V
  • Rated speed: 2RPM-2000RPM or customized
  • Gearbox diameter: Ø25mm with metal construction
  • Gear reduction ratio: 1:10-1:1051 or customized
  • Motor types: Permanent magnet DC brushed motors RF-300, RF-310, RF-370, RS-385, RS-380, RS-365, RS-390
  • Direction: CW/CCW available
  • Shaft types: Round, Flat, Bare, D-Cut, Pin Hole, Threaded shaft, Keyway shaft (customizable)
  • Meets EU environmental standards: low energy consumption, low noise
Technical Specifications
Parameter Specification
Speed (RPM) 2RPM-2000RPM
Continuous Current 10mA-500mA
Efficiency 50%-85%
Warranty 3 Months-1 Year
Model Number MSGM25A370
Gearbox Material Rohs Metal Gearbox
Gear Ratio 1:15-1:1051
Motor Type Brush Motor / Brushless Motor
Noise Level ≤50DB
Shaft Diameter φ4mm
Motor Lifetime 500 hours-2000 hours (customizable)

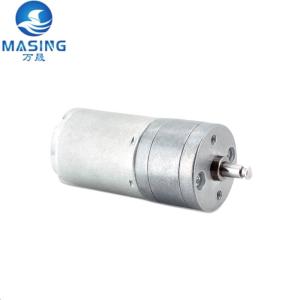

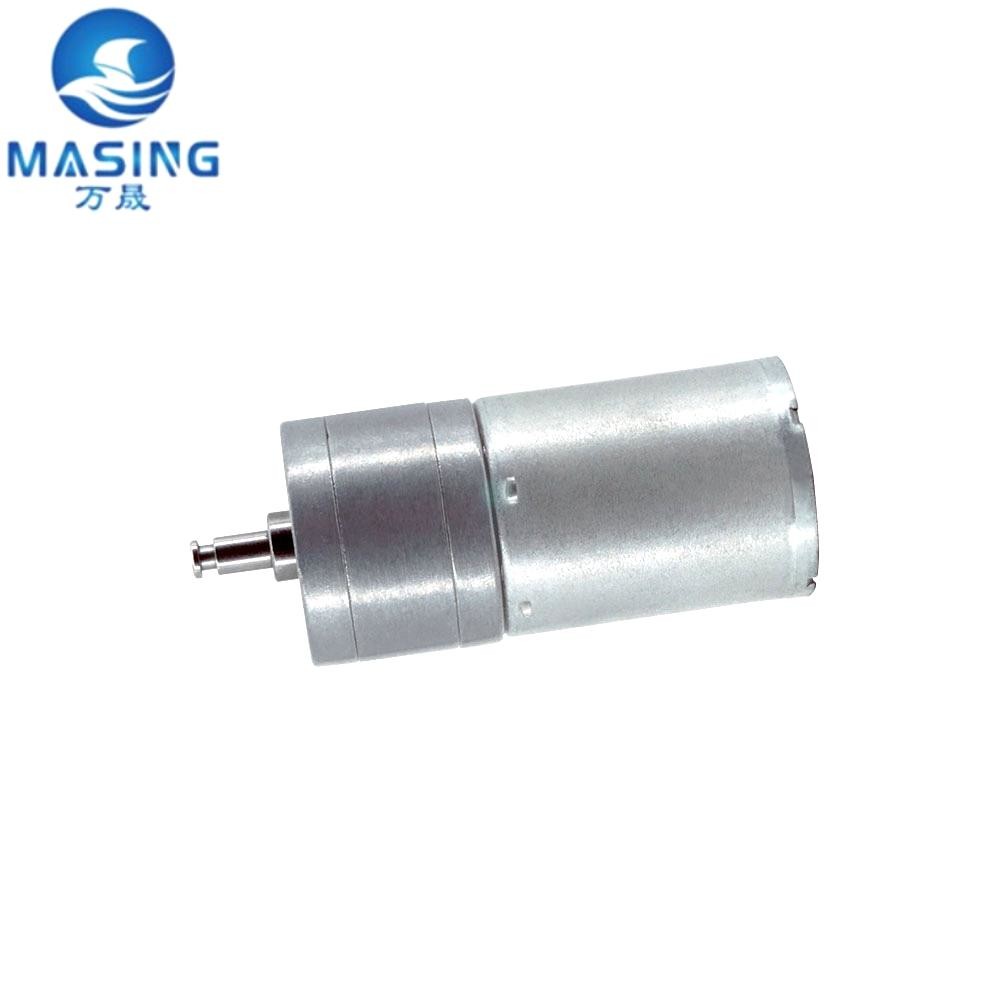

Product Images
DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker
Detailed Motor Specifications
Parameter Range
Rated Voltage 1.2-24V DC
Reduction Ratio 1:10-1:1051
No-load Speed 2~2000 RPM
No-Load Current 10-500 mA
Rated Speed 1.5-1800 RPM
Rated Current 80-800 mA
Rated Torque 0.03-10 kg.cm
Stall/Maximum Torque 0.5-25 kg.cm
Stall Current 0.5-5 A
DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker
Packaging & Delivery
  • Packaging: Strong Carton 1000pcs/box, or customized
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single item
  • Package Size: 12×10×24mm
  • Gross Weight: 0.045kg
  • Supply Ability: 100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications
  • Maximum sample quantity: 1 piece
  • Sample price: $5/piece
  • Certifications: 16949, EU, CE, Rohs, ISO
DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker
Applications
  • Smart Breast Shaker
  • Motorcycle Smart Lock
  • Meat Grinder
  • Intelligent Car Systems
  • Home Equipment & Appliances
  • Robots & Vending Machines
  • Medical Devices
  • Robot Vacuum Cleaners
  • Door Locks & Cameras
  • Electronic Locks & Public Bicycle Locks
DC3.7V 260RPM High Speed High Torque Brushless 370 Geared DC Motor For Smart Breast Shaker
Frequently Asked Questions
Q1: Can you make the gearbox with custom specifications?
A1: YES. We have strong R&D capability and experienced engineers to handle custom specifications.
Q2: Do you provide samples?
A2: YES. We provide samples with delivery time of 5-15 days. Sample charges are refundable upon formal order placement.
Q3: What is your MOQ?
A3: Our standard MOQ is 1000 pieces, but we accept smaller orders for new business relationships.
Q4: Do you have items in stock?
A4: No, all products are made to order according to customer requirements.
Q5: How can I know if the product is suitable for my application?
A5: Please provide detailed requirements including voltage, speed, torque, and shaft specifications. We will recommend suitable products and provide samples for testing.
